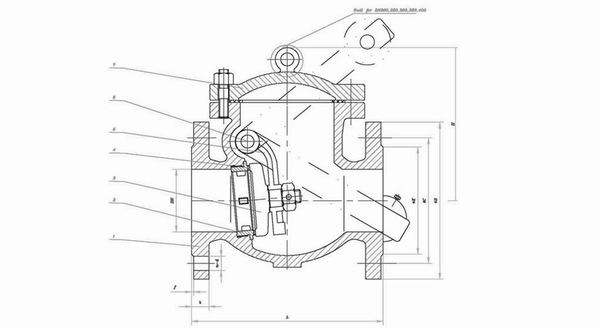

Product Name: JR-CK-07 Swing Check Valve with Counterweight BS 5153

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

BS standard swing check valves with counter weight in cast iron PN 16 and 25 are manufactured in cast iron with ductile iron disc and sealing face in bronze. They are installed for water, steam, gas, oil.

Design & manufacture: BS 5153; MSS SP 71, AWWA C508
Face to face: DIN 3202 F6, ANSI B016.10
Flanged ends: ISO7005-2 PN10/PN16/PN25


Body & Bonnet
Cast Iron, Ductile Iron
Disc
Ductile Iron
Sealing face
Bronze

DN
L mm
H mm
D mm
Weight kg
50
203
120
152
-
65
216
135
178
-
80
241
148
191
-
100
292
180
229
-
125
330
205
254
-
150
356
230
279
-
200
495
258
343
-
250
622
391
406
-
300
698
427
483
-
350
787
561
533
-
400
914
582
597
-
450
965
630
635
-
500
978
708
699
-
600
1295
800
813
-
