BS standard swing check valves in cast iron PN 16 and 25 are manufactured in cast iron with ductile iron disc and sealing face in bronze. They are installed for water, steam, gas, oil.
Design & manufacture: BS 5153
Face to face: ANSI B16.10
Flanged ends: ISO7005-2 PN10/PN16/PN25
|
Body & Bonnet |
Cast Iron, Ductile Iron |
|
Disc |
Ductile Iron |
|
Sealing face |
Bronze |
|

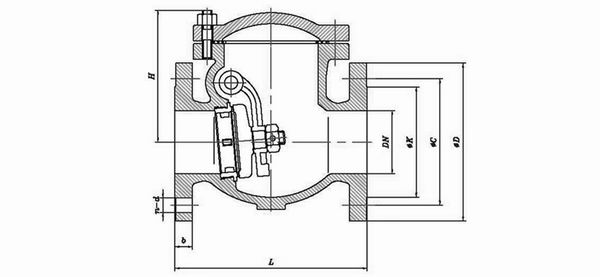

DN |
L mm |
H mm |
D mm |
Weight kg |
|
50 |
203 |
120 |
152 |
14 |
|
65 |
216 |
135 |
178 |
17 |
|
80 |
241 |
148 |
191 |
24 |
|
100 |
292 |
180 |
229 |
35 |
|
125 |
330 |
205 |
254 |
50 |
|
150 |
356 |
230 |
279 |
65 |
|
200 |
495 |
258 |
343 |
113 |
|
250 |
622 |
391 |
406 |
210 |
|
300 |
698 |
427 |
483 |
320 |
|
350 |
787 |
561 |
533 |
450 |
|
400 |
914 |
582 |
597 |
502 |
|
450 |
965 |
630 |
635 |
565 |
|
500 |
978 |
708 |
699 |
624 |
|
600 |
1295 |
800 |
813 |
1510 |
