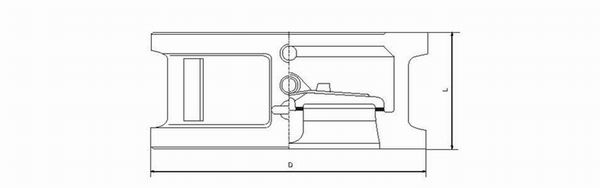

Product Name: JR-CK-03 Wafer Type Check Valve

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

The wafer type dual plate check valves are a compact kind of check valve. It can be mounted directly between flanges and in accordance to many standard connections. The body is made in one piece only, in cast steel. The automatic mechanism of plate opening grants low water losses, and the spring avoids fluid hammer effect.

Design & manufacture: API 594; API 6D
Face to face: API 594; API 6D; DIN 3202
Flanged ends: DIN 2543-2548; API 605; ANSI B16.47
Welded ends: ANSI B16.25
Inspection & test: API 598

Body & Bonnet
Cast Steel ASTM A216 WCB, Stainless Steel ASTM A351 CF8, CF8M, CF3, CF3M
Disc
Stainless Steel 13CR, ASTM A351 CF8, CF8M, CF3, CF3M
Shaft & Spring
13CR, F304(L), F316(L), MONEL
Sealing face
ASTM A182 F6a, ASTM A182-F304, F316, F321, F304L, F316L, STL, MONEL

DN
L mm
D mm
Weight kg
150 lbs
2¡±
60
103
2.1
2 1/2¡±
67
106
3.1
3¡±
73
135
4.0
4¡±
73
173
6.2
6¡±
98
22
13.1
8¡±
127
129
25.0
10¡±
146
338
39.0
12¡±
181
410
54.0
14¡±
184
451
80.0
16¡±
191
514
118.0
18¡±
203
549
210.0
20¡±
219
606
240.0
24¡±
222
718
410.0
