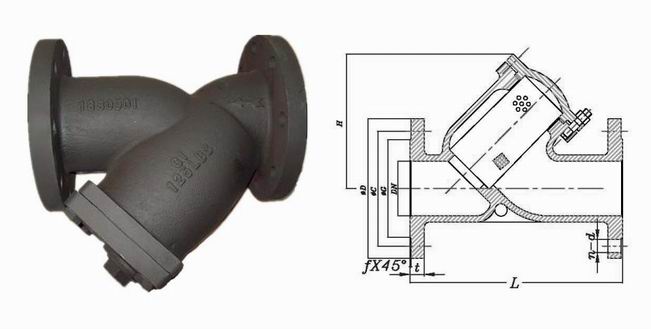

The ¡°Y¡± strainers are suitable to retain and collect any impurity from the pipeline. The cast iron ¡°Y¡± strainers are manufactured in cast iron GG25 according to API, ANSI standard, for industrial applications. The basket screen made in stainless steel 304 or 316 is removable for its cleaning.
Design & manufacture: API
Flange ends: ANSI B16.10
BW ends: ANSI B16.5
Test & inspection: API 598
|
DN |
D mm |
L mm |
H mm |
Weight kg |
|
125/150 lbs |
|
50 |
152 |
230 |
220 |
- |
|
65 |
178 |
290 |
290 |
- |
|
80 |
191 |
310 |
310 |
- |
|
100 |
229 |
350 |
360 |
- |
|
125 |
254 |
400 |
430 |
- |
|
150 |
279 |
480 |
550 |
- |
|
200 |
343 |
600 |
620 |
- |
|
250 |
406 |
730 |
700 |
- |
|
300 |
483 |
850 |
800 |
- |
|
Body & Bonnet |
Ductile Iron, Cast Iron |
|
Screen |
Stainless Steel F304, F304, F316 |
|
Gasket |
Graphite, Teflon |
|
Plug |
Ductile Iron, Cast Iron |
