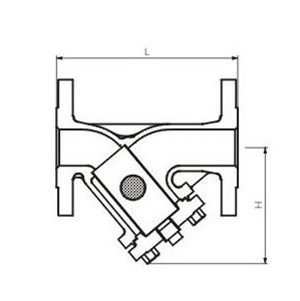

The ¡°Y¡± strainers are suitable to retain and collect any impurity from the pipeline. The cast steel ¡°Y¡± strainers are manufactured in cast steel GS-C25 according to DIN standard, for industrial applications. The basket screen made in stainless steel 304 or 316 is removable for its cleaning.
Design & manufacture: DIN
Face to face: DIN 3202 F1
Flange ends: DIN 2531-2545
Test & inspection: API 598
|
DN |
L mm |
H mm |
Weight kg |
|
PN 16 |
|
15 |
130 |
85 |
2.8 |
|
20 |
150 |
95 |
3.8 |
|
25 |
160 |
110 |
5.3 |
|
32 |
180 |
125 |
7.3 |
|
40 |
200 |
145 |
9.0 |
|
50 |
230 |
155 |
11.8 |
|
65 |
290 |
170 |
16.2 |
|
80 |
310 |
205 |
20.4 |
|
100 |
350 |
230 |
35.0 |
|
125 |
400 |
270 |
45.4 |
|
150 |
480 |
318 |
62.0 |
|
200 |
600 |
400 |
132.0 |
|
250 |
730 |
555 |
220.0 |
|
300 |
850 |
620 |
330.0 |
|
350 |
980 |
700 |
540.0 |
|
400 |
1100 |
820 |
830.0 |
|
Body & Bonnet |
GS-C25(N), 1.4308, 1.4408 |
|
Screen |
F304, F304, F316 |
|
Gasket |
Graphite + SS304, Graphite + SS316 |
|
Bolt/nut |
B7/2H, B8/8, B8M/8M |
|
Mesh |
|
Water |
20-40 mesh |
|
Gas |
40-100 mesh |
|
Oil |
10-160 mesh |
