The ¡°Y¡± strainers are suitable to retain and collect any impurity from the pipeline. The cast steel ¡°Y¡± strainers are manufactured in cast steel A216WCB according to API, ANSI, ASME standard, for industrial applications. The basket screen made in stainless steel 304 or 316 is removable for its cleaning.
Design & manufacture: API 600, API 6D, ANSI B16.34
Face to face: ANSI B16.10
Flange ends: ANSI B16.5
BW ends: ANSI B 16.25
Pressure & temperature: ANSI B16.34
Test & inspection: API 598
|

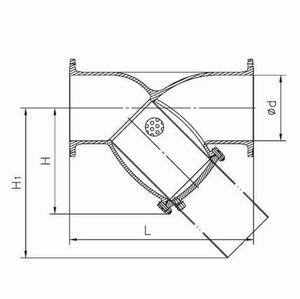

DN |
L mm |
H mm |
Weight kg |
|
150 lbs |
|
1/2¡± |
108 |
67 |
2 |
|
3/4¡± |
117 |
73 |
2 |
|
1¡± |
127 |
87 |
3 |
|
1 1/4¡± |
140 |
100 |
4 |
|
1 1/2¡± |
165 |
120 |
5 |
|
2¡± |
203 |
145 |
13 |
|
2 1/2¡± |
216 |
170 |
15 |
|
3¡± |
241 |
190 |
18 |
|
4¡± |
292 |
245 |
22 |
|
5¡± |
356 |
290 |
42 |
|
6¡± |
406 |
325 |
50 |
|
8¡± |
495 |
370 |
91 |
|
10¡± |
622 |
455 |
205 |
|
12¡± |
699 |
525 |
297 |
|
14¡± |
787 |
610 |
394 |
|
16¡± |
914 |
800 |
570 |
|
18¡± |
978 |
965 |
680 |
|
20¡± |
978 |
1100 |
830 |
|
Body & Bonnet |
WCB, CF8, CF8M |
|
Screen |
F304, F304, F316 |
|
Gasket |
Graphite + SS304, Graphite + SS316 |
|
Bolt/nut |
B7/2H, B8/8 |
