PRODUCT >> Valves >> Plug
Product Name: JR-PV-02 Cast steel sleeve type soft sealing plug valve acc. to ANSI

   SPECIFICATION/SPECIAL FEATURES

Click for the technical details

Sleeve type soft sealing plug valve acc. to ANSI is applicable to the cutting and connection of pipeline medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc under nominal pressure of class 150 to 900lbs, and working temperature of 129¡æ to 180 ¡æ.

Structural formation: BC
Operating: Wrench, worm & worm gear, pneumatic, electric actuated
Design: API 599; API 6D
Face to face: ASME B16.10
Flange end: ASME B16.5
Test & inspection: API 598; API 6D

Nominal Pressure (lbs)
Shell Test (MPa)
Sealing Test (MPa)
Suitable Temp. (¡æ)
Suitable Medium
150
3.0
2.2
¡Ü180¡æ
Water, oil & gas
300
7.5
5.5
600
15.0
11.0
900
22.5
16.5

Body & Bonnet
Cast Steel ASTM A216 WCB, Stainless Steel ASTM A351 CF8, CF8M, CF3, CF3M
Plug
ASTM A182 F6a, ASTM A182 F22, ASTM A182-F304, F316, F321, F304L, F316L
Gasket
Flexible graphite+SS304, PTFE
Wrench
ASTM A216 WCB

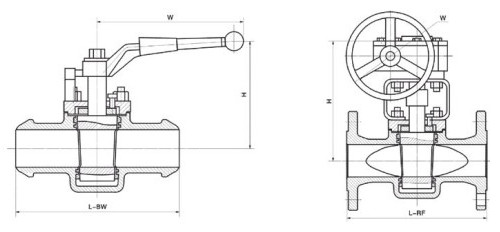

DN
L mm
H mm
W mm
Weight kg
150 lbs
15
108
110
175
8.5
20
117
115
175
9.5
25
127
115
175
10.5
32
140
135
220
12
40
165
140
280
14
50
178
150
305
18
65
190
165
350
22
80
203
180
405
26
100
229
380
300
40
125
254
460
300
60
150
267
520
320
70
200
292
580
320
130
250
330
620
350
219
300
356
680
380
381
350
381
760
450
570
